4K/30Hz HDMI Over Single-Core Single Mode / Multimode Fiber Extender

Sorry, no canvas available
4K/30Hz HDMI Over Single-Core Single Mode / Multimode Fiber Extender 4K/30Hz HDMI Over Single-Core Single Mode / Multimode Fiber Extender 4K/30Hz HDMI Over Single-Core Single Mode / Multimode Fiber Extender 4K/30Hz HDMI Over Single-Core Single Mode / Multimode Fiber Extender 4K/30Hz HDMI Over Single-Core Single Mode / Multimode Fiber Extender

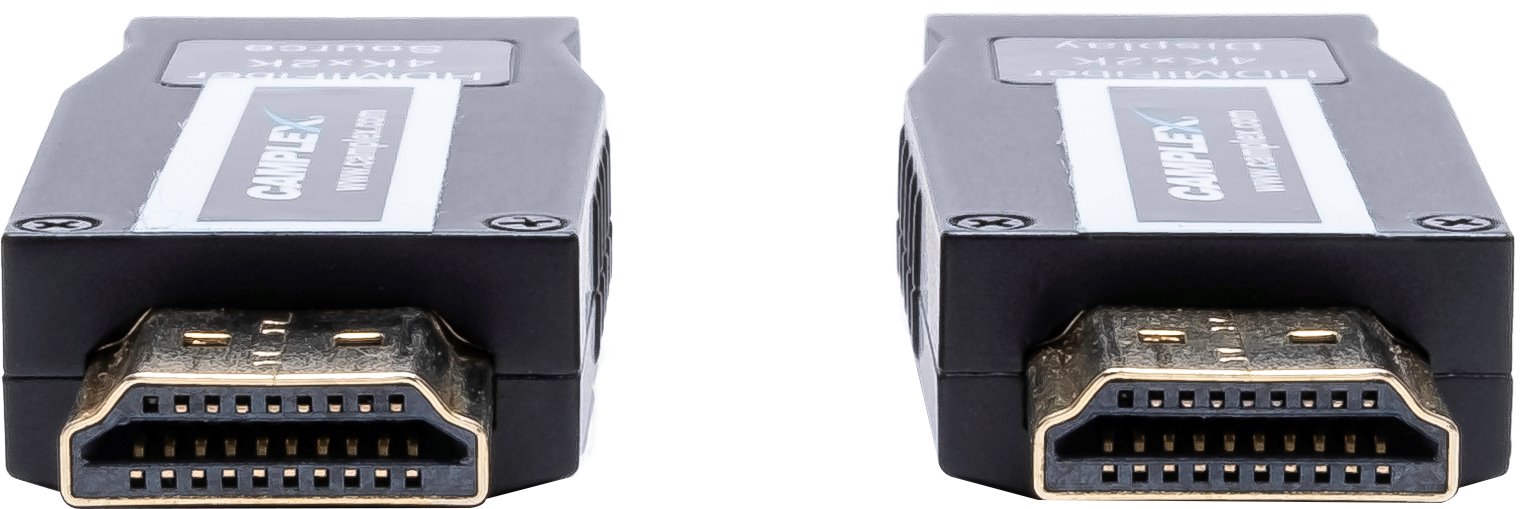

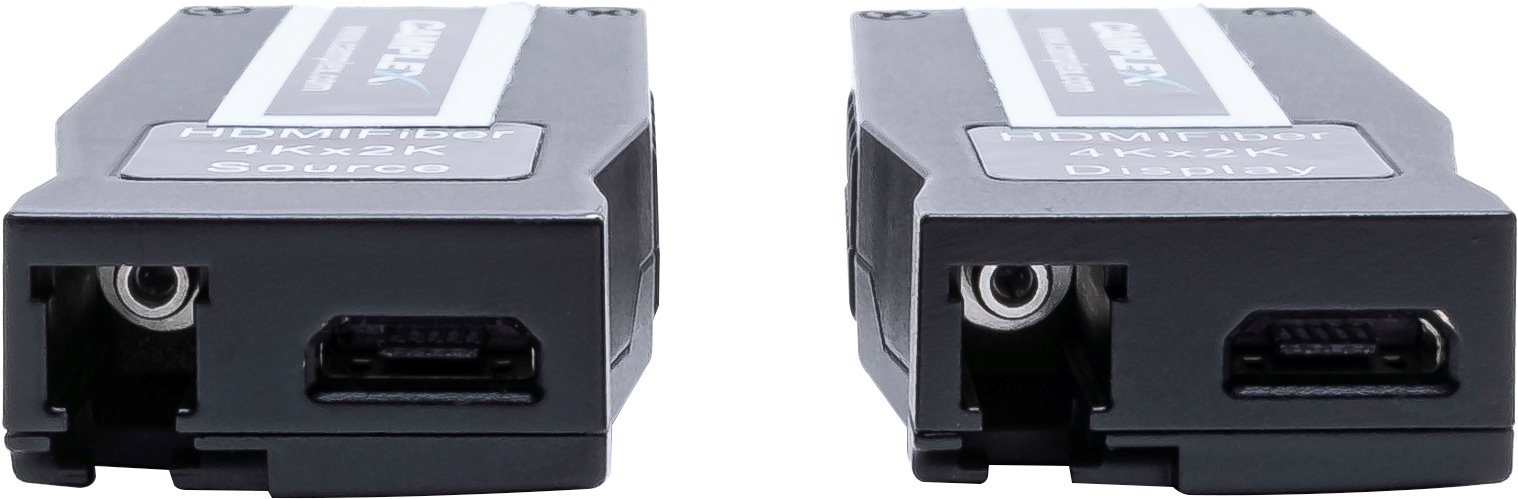

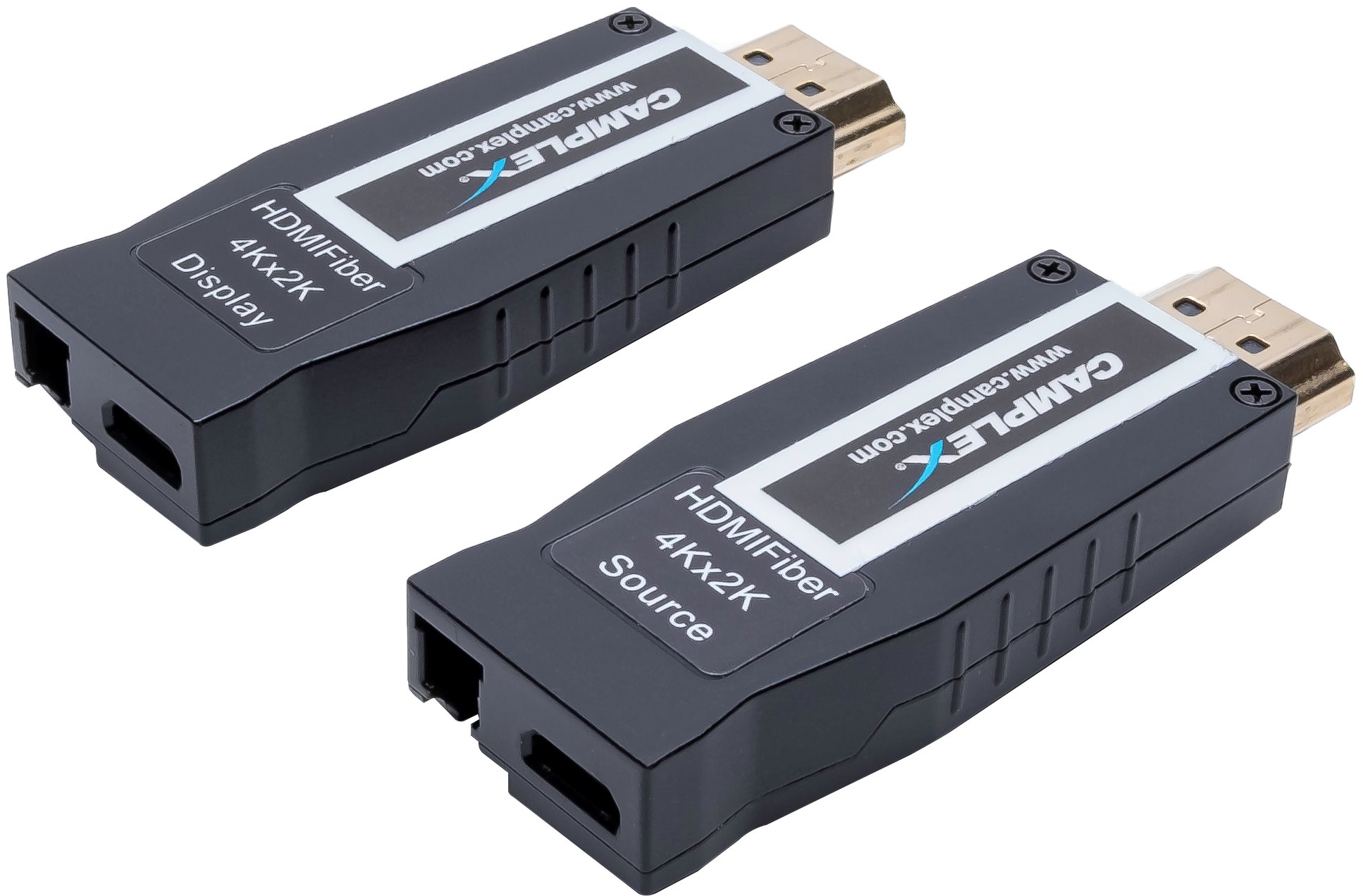

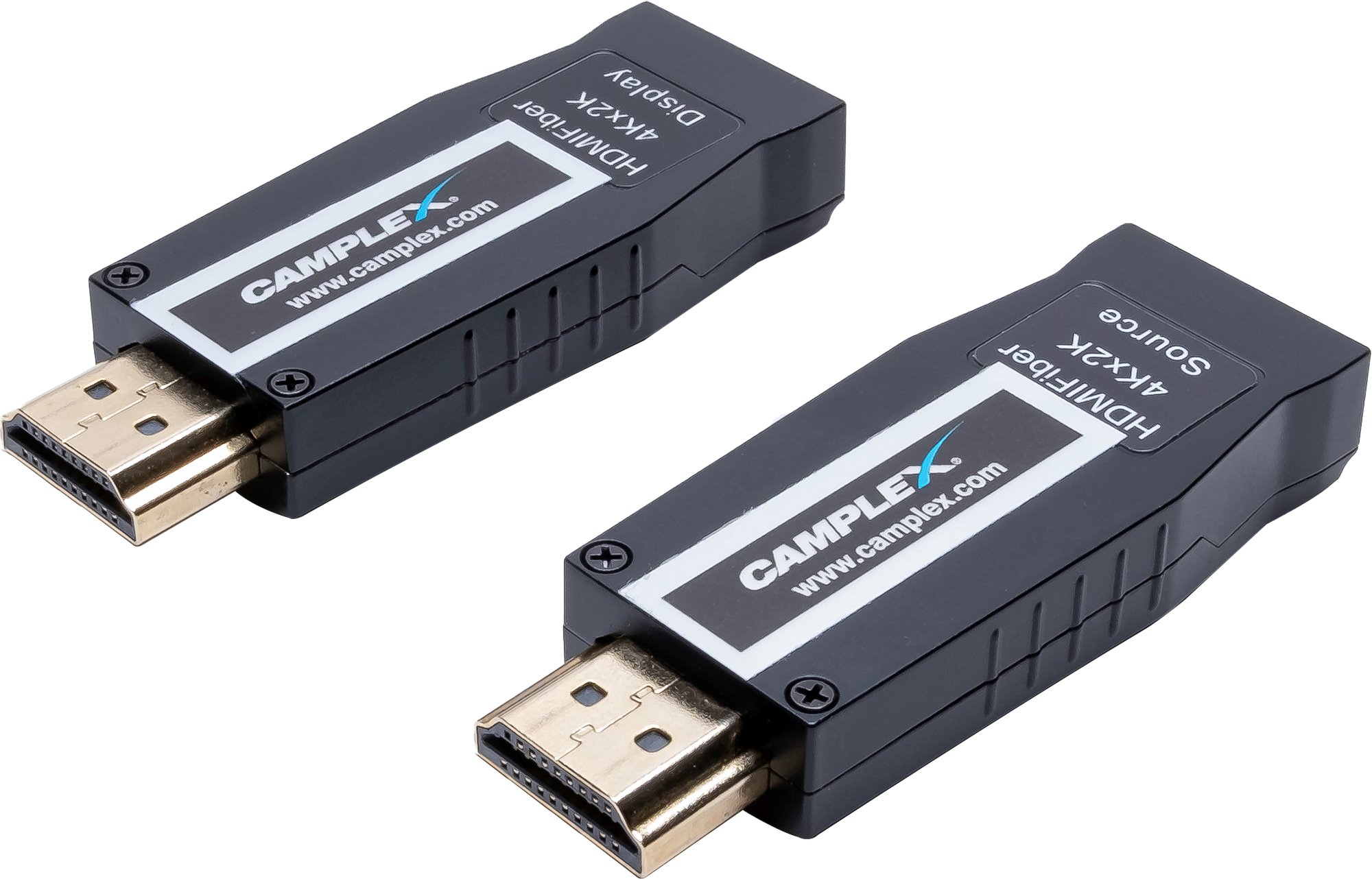

The Camplex CMX-HDMI-SM-TR is a 4K/30Hz HDMI over Single-Core SM/MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.


CMX-HDMI-SM-TR

  •  Supports Resolutions up to 4K/30Hz (Y:U:V 4:4:4)
  •  Extends HDMI/DVI Data up to 300 Meters Over a Single Mode or OM3 Multimode Fiber Cable
  •  HDCP Compliant
  •  Compact Design to Directly Plug Into Equipment
  •  Promotes Secure Data with Negligible RFI/EMI Emissions and Loss of Video Quality Due to no Copper Conductor Present
  •  Resolutions: 4K30Hz (Y:U:V 4:4:4)
  •  Input and Output Signals: TMDS Level (Compliant with HDMI 1.4)
  •  Data Transfer Rate: Max 10Gbps
  •  Maximum Video Bit Rate: 10Gb/s
  •  Transmission Distance: 984ft/300m
  •  Optical Connector: 1 x LC Connector
  •  Electric Connector Type from System to Display: HDMI
  •  Recommended Fiber: OM3 Multimode or Single Mode Fiber
  •  Operating Temperature: 14°F-158°F (-10°C-70°C)
  •  Storage Temperature: -40°F-185°F (-40°C-85°C)
  •  Dimensions (LxWxH): 2.53 x 0.88 x 0.42in
  •  Weight: 0.0625lbs (27g)
