4K HDMI over Fiber Extender Set

Sorry, no canvas available

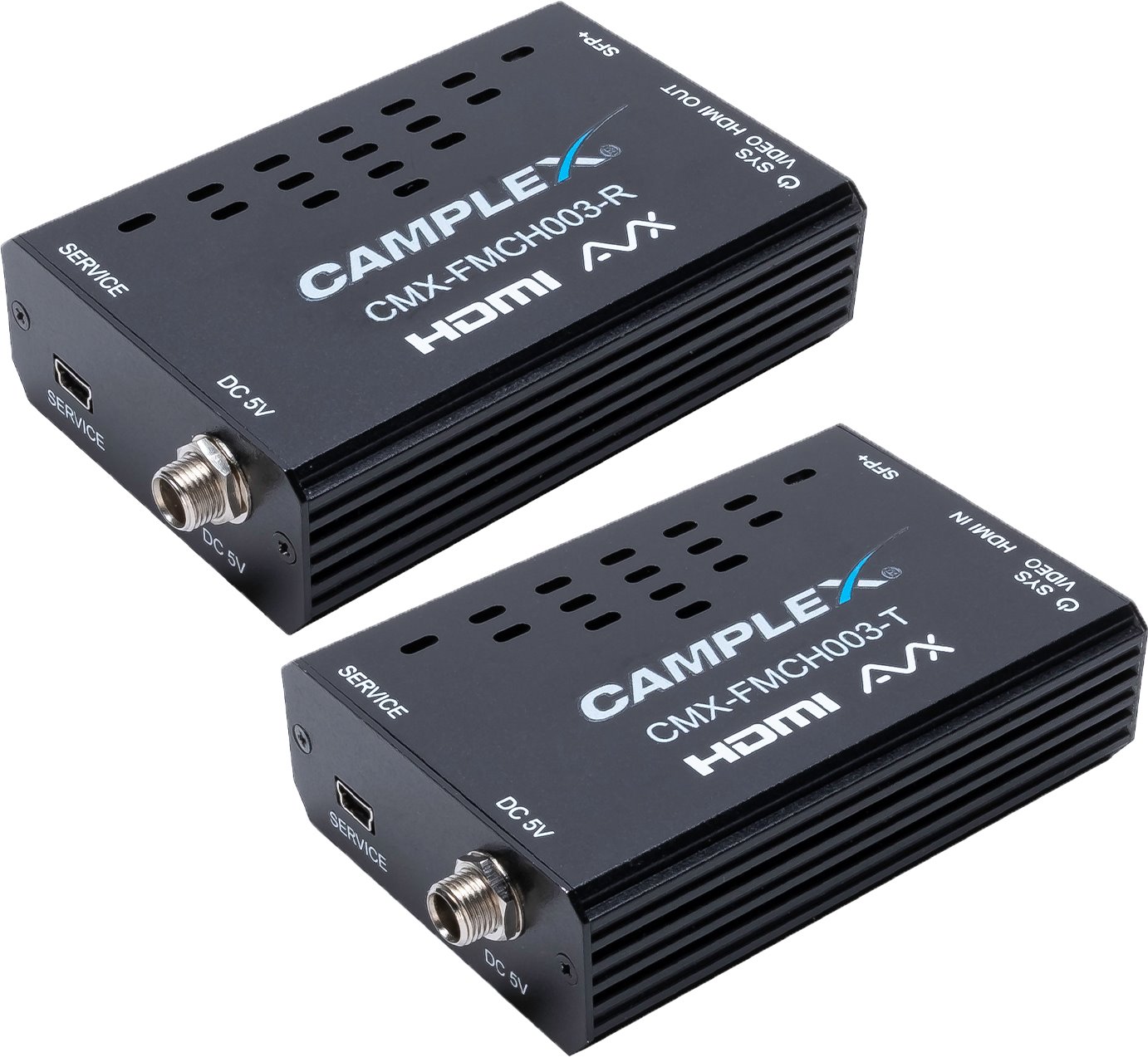

The Camplex CMX-FMCH003 extender set is designed for high-quality 4K AV extension over Single Mode or Multimode fiber (SFP+ dependent) with very minimal latency. The compact size of the units allows for greater flexibility during installation. Supports all HDMI 2.0 formats including multichannel PCM, Dolby True HD, and DTS HD master audio.


Features:

  • Point-To-Point Extension of Audio, Video, and Control Signals
  • Supports a Full Range of Formats Including 4K60 RGB/4:4:4, HDR10, 3D and Broadcast-Friendly 4K60 10-Bit 4:2:2
  • Extension Up To 30km (SFP+ Module Dependent)
  • Supports Single Mode or Multimode Fiber (SFP+ Module Dependent)
  • Supports Pass-Through of 10/12-Bit HDR Sources
  • Signal Transmission Interfaces With 10-Gigabit Ethernet Switches Via XFI
  • (IEEE 802.3ae) Compatible 10-Gigabit Ethernet Connector



Specifications:

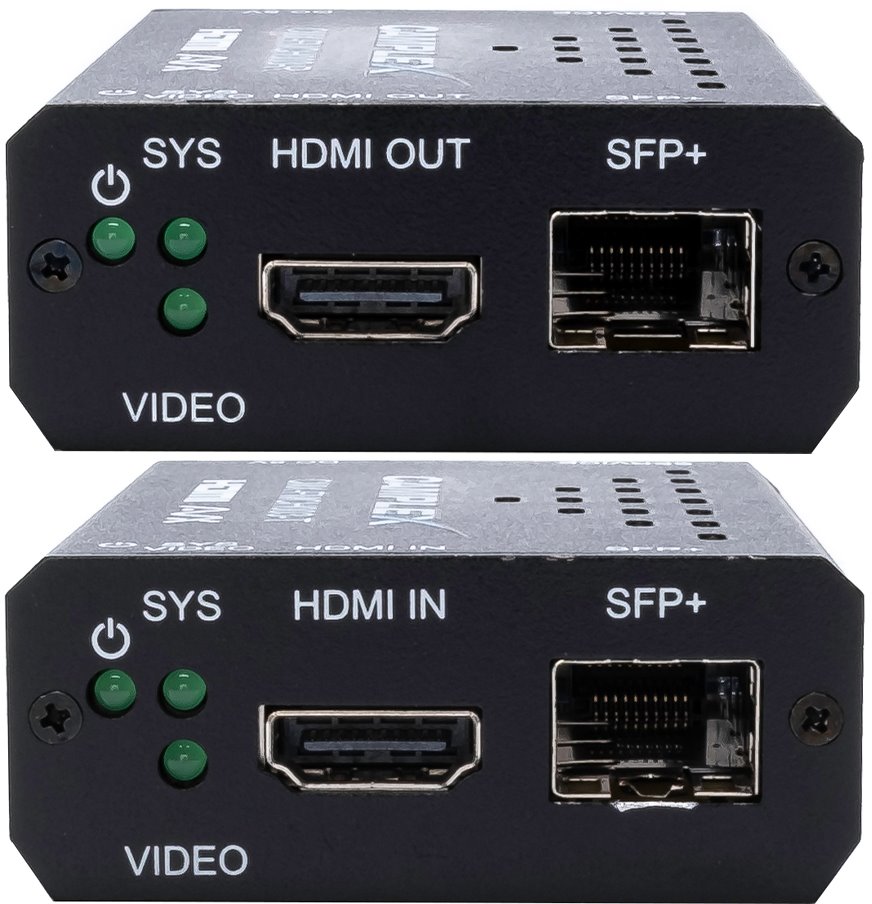

  • Tx Input: HDMI
  • Tx Output: 10GbE LAN (SFP+ Module Dependent)
  • RX Input: 1 10GbE LAN (SFP+ Module Dependent)
  • Rx Output: HDMI
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: 2.2
  • Supported Resolutions: Up to 4096 x 2160 @ 60 YUV 4:4:4
  • Supported Audio: LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

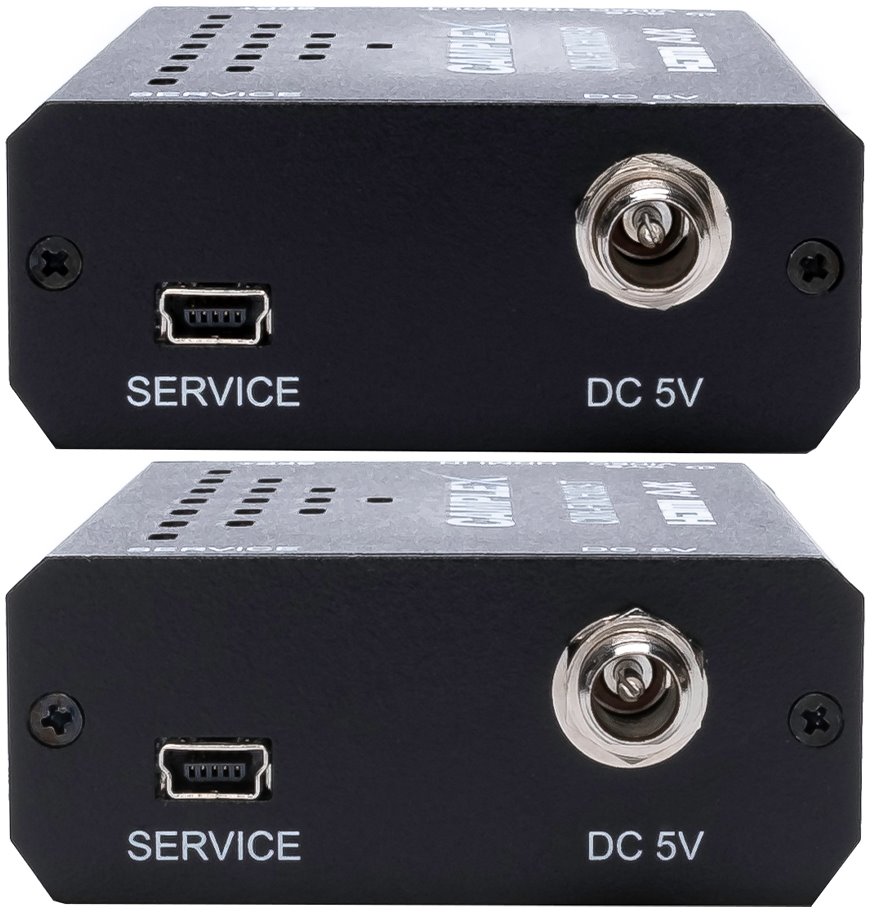

  • Power Supply: 5V/2.6A DC



Item Includes:

(1) Transmitter; (1) Receiver; (2) Power Supplies (4) International Adapters


NOTE: Requires Duplex MSA Compliant SFP+ Modules (Not Included)



CMX-FMCH003
