Armored Patch Cables

Sorry, no canvas available
Camplex Multimode Simplex LC to LC Armored Patch Cable

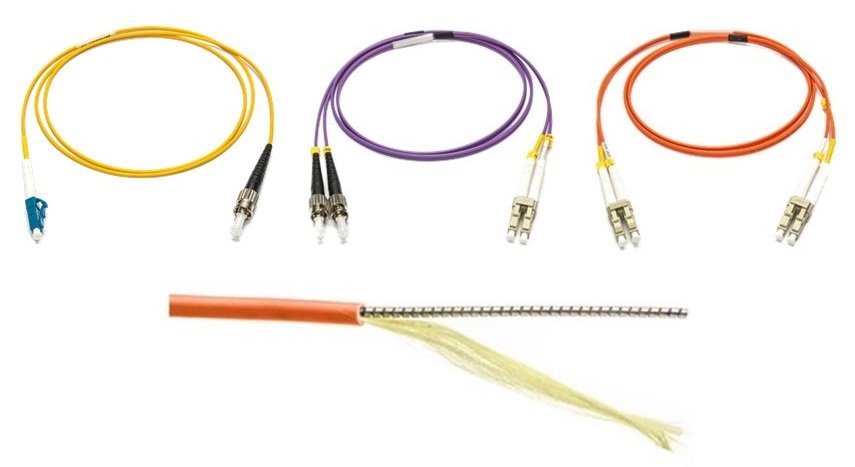

Lightweight and easy to handle, Camplex Armored Fiber Optic Patch Cables feature a stainless-steel tube wrapped around the fibers and are designed for intrabuilding applications such as data centers that require long-term, reliable protection. These riser cables are moisture, crush, and rodent-resistant while maintaining the flexibility found in standard fiber optic cables.


Available Options with configurations of LC and ST connectors and various lengths:

  • SMXS9: Single Mode Simplex
  • SMXD9: Single Mode Duplex
  • MMXSM4: OM4 Multimode Simplex
  • MMXDM4: OM4 Multimode Duplex
  • MMXS62: OM1 Multimode Simplex
  • MMXD62: OM1 Multimode Duplex

ARMORED PATCH CABLES

  •  Stainless Steel Armor Provides Added Durability
  •  Bend Insensitive Fiber for Maximum Flexibility (Single Mode & OM4)
  •  Riser-Rated, PVC Jacket
  •  Flame Retardant and Crush Resistant
  •  Ideal for Patching Backbone Trunks to High-Speed Network Devices
  •  Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment

ALL
Bend Radius: Dynamic: 60mm / Static: 30mm
Temperature: -20°C ~ 60°C
Pressive Strength: Long Term: 3000N / Short Term: 1500N

SINGLE MODE SIMPLEX & DUPLEX
Insertion Loss: ≤0.30dB (UPC) / ≤0.30dB (APC)
Return Loss: ≤-55dB (UPC) / ≤-65dB (APC)
Attenuation: @1310nm:≤0.35dB/km / @1550nm:≤0.21dB/km
Tensile Strength: Simplex- Long Term: 2.0mm 80N Short Term 2.0mm: 150N
Tensile Strength: Duplex- Long Term: 2.0mm 200N Short Term 2.0mm: 400N

MULTIMODE SIMPLEX & DUPLEX
Insertion Loss: ≤0.2dB
Attenuation: OM1 @850nm:≤3.5dB/km / @1300nm:≤1.0dB/km
Attenuation: OM4 @850nm: ≤3.5dB/km / @1300nm: ≤0.7dB/km
Tensile Strength: Simplex- Long Term: 2.0mm 80N Short Term 2.0mm: 150N
Tensile Strength: Duplex- Long Term: 2.0mm 200N Short Term 2.0mm: 400N
BW: OM1 - @850nm: ≥200MHz Km / @1300nm:≥500MHz Km
BW: OM4 - @850nm: ≥3500MHz Km / @1300nm:≥500MHz Km
