Breakout Cables - ARIB

Sorry, no canvas available
Camplex FCS015A-FR Hybrid Fiber Optic Receptacle Cable SMPTE/ARIB LC Camplex FCS015A-FR Hybrid Fiber Optic Receptacle Cable SMPTE/ARIB LC

The Camplex HF-FCS series of SMPTE internal hybrid distribution breakout cables utilize Canare FCFRA and FCMRA SMPTE connectors that break out to standard fiber optic connectors and 6-pin AMP power connectors for simplified installation. Designed for use in rack panels, splice trays, adapters, and wall boxes.

The HF-FCS series consists of two Single Mode fibers, two 22 AWG and two 18 AWG wires with tinned copper conductors, and a flexible PVC jacket encased in a durable braided sleeve. These assemblies integrate the power, control, and fiber into one assembly for video and audio transmission. Compliant with ARIB and SMPTE standards.

Available in plug and receptacle configurations with ST, LC or SC fiber connectors and in a variety of standard lengths.

HF-FCS01A-FR-LC

HF-FCS01A-FR-LC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with LC Connectors - Female

HF-FCS01A-FR-SC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with SC Connectors - Female

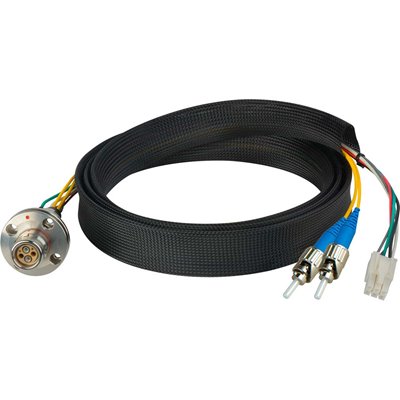

HF-FCS01A-FR-ST

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with ST Connectors - Female

HF-FCS01A-MR-LC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with LC Connectors - Male

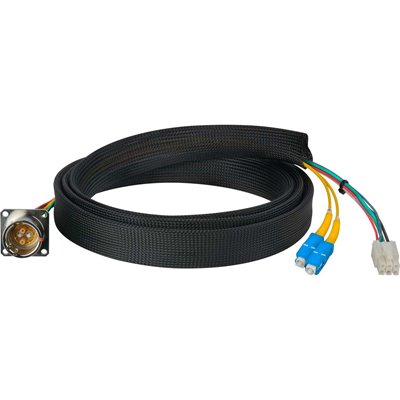

HF-FCS01A-MR-SC

Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with SC Connectors - Male

HF-FCS01A-MR-ST

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with ST Connectors - Male

HF-FCS03A-FR-LC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with LC Connectors - Female

HF-FCS03A-FR-ST

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with ST Connectors - Female

HF-FCS03A-MR-LC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with LC Connectors - Male

HF-FCS03A-MR-SC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with SC Connectors - Male

HF-FCS03A-MR-ST

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with ST Connectors - Male

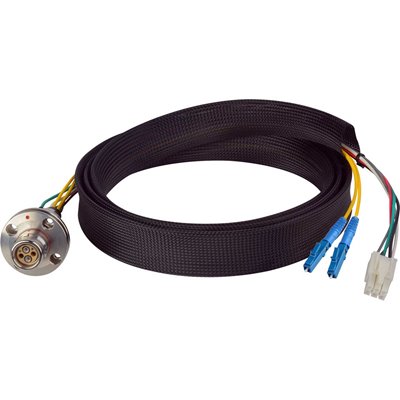

HF-FCS06A-FR-LC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with LC Connectors - Female

HF-FCS06A-FR-SC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with SC Connectors - Female

HF-FCS06A-FR-ST

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with ST Connectors - Female

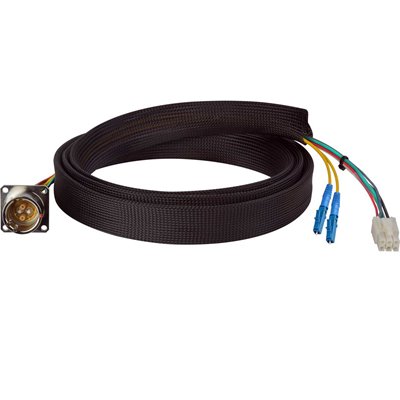

HF-FCS06A-MR-LC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with LC Connectors - Male

HF-FCS06A-MR-SC

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with SC Connectors - Male

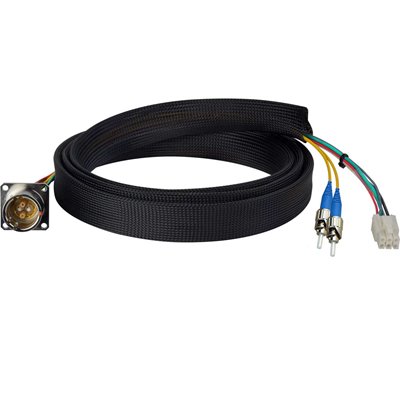

HF-FCS06A-MR-ST

Canare Hybrid Fiber Optic Receptacle SMPTE/ARIB Cable with ST Connectors - Male

  • Premium SMPTE Cable
  • Canare & Senko Connectors
  • Machine polished fiber contacts
  • Low insertion and return loss
  • SMPTE 311m and 304m compliant SMPTE fiber cable
  • Stainless steel assemblies
  • Rubber dust caps
  • 19.4 Mbps to 3 Gbps transport
