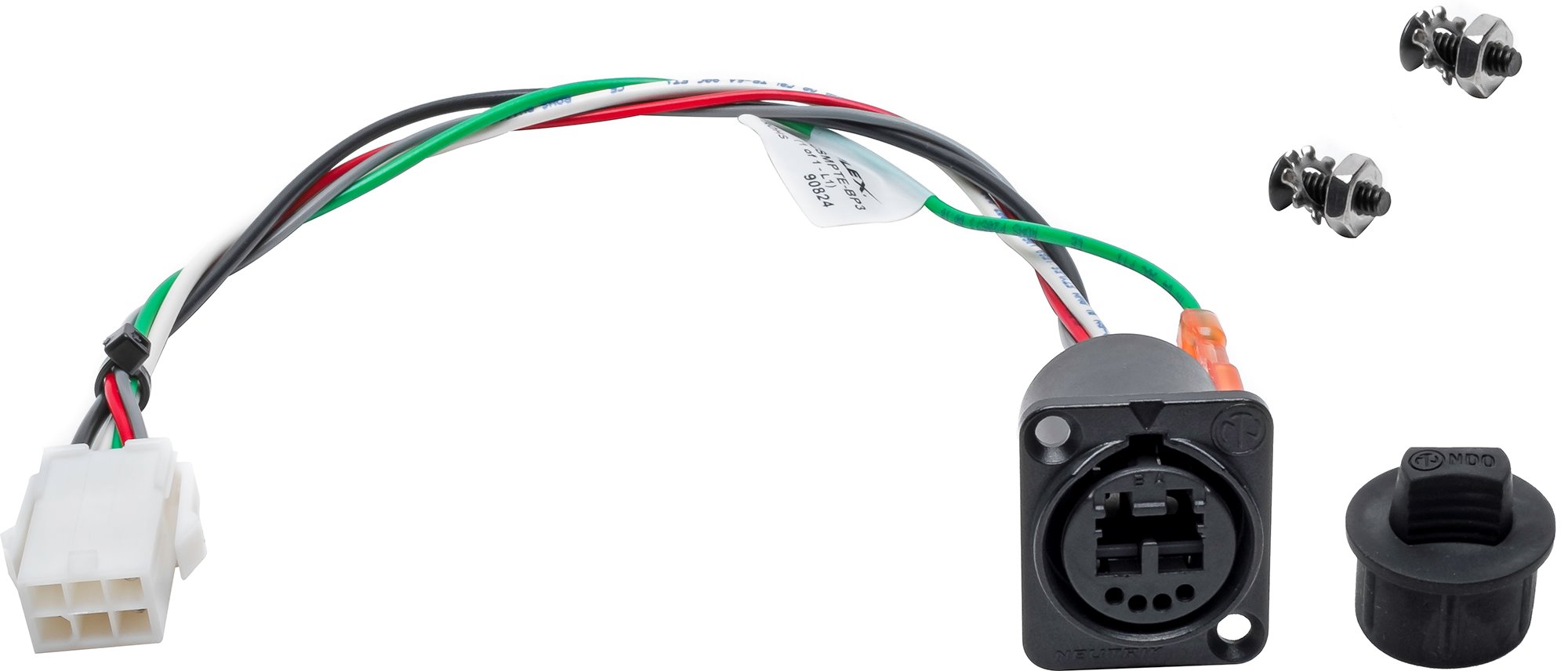

Camplex HF-OCSMPTE-BP3 opticalCON DUO SMPTE Chassis with Pre-wired Copper to BP3 Style 6-pin AMP Connector - NO FIBER

Sorry, no canvas available

The Camplex HF-OCSMPTE-BP3 is a pre-terminated opticalCON DUO SMPTE chassis with copper wires to our standard BP3 style 6-pin AMP connector for plug-and-play installation. Easily break out your opticalCON SMPTE power conductors to Camplex's "BP3" style 6-Pin AMP molex connectors, for simplified and space-saving installations.


HF-OCSMPTE-BP3

  •  Neutrik opticalCON Chassis with Protective Rubber Dustcap
  •  Pre-wired Copper
  •  "BP3" Style 6-Pin AMP Connector
  •  Fiber Optic Assemblies 100% Tested for Attenuation and Back Reflection
  •  No Fiber - Power Conductors Only
  •  Neutrik NO2-4FDW-1-A opticalCON DUO Chassis Mount:
  •  Contact resistance: < 7 mΩ
  •  Dielectric strength: 1,5 kVdc
  •  Insulation resistance: > 2 GΩ (initial)
  •  Rated current per contact: 6 A
  •  Rated voltage: < 50 V (1)
  •  Ground contact: Faston 2.8 x 0.5
  •  Insertion force: < 45 N
  •  Withdrawal force: < 45 N
  •  Lifetime (typ.): 5000 mating cycles
  •  Locking force: 1000 N
  •  Locking device: Push-Pull
  •  Mounting direction: Front mounting
  •  Chassis shape: D
  •  Contacts: Bronze (CuSn6)
  •  Flammability: UL 94 V-0
  •  Temperature range: 40°F - 167°F (-40°C to +75 °C)
  •  Insertion loss: < 0.4 dB / connection
  •  Optical connector: LC-Duplex Feedthrough
