SFP HDMI 2.0 Extender with EDID

Sorry, no canvas available
SFP HDMI 2.0 Extender with Automatic EDID SFP HDMI 2.0 Extender with Automatic EDID SFP HDMI 2.0 Extender with Automatic EDID SFP HDMI 2.0 Extender with Automatic EDID SFP HDMI 2.0 Extender with Automatic EDID

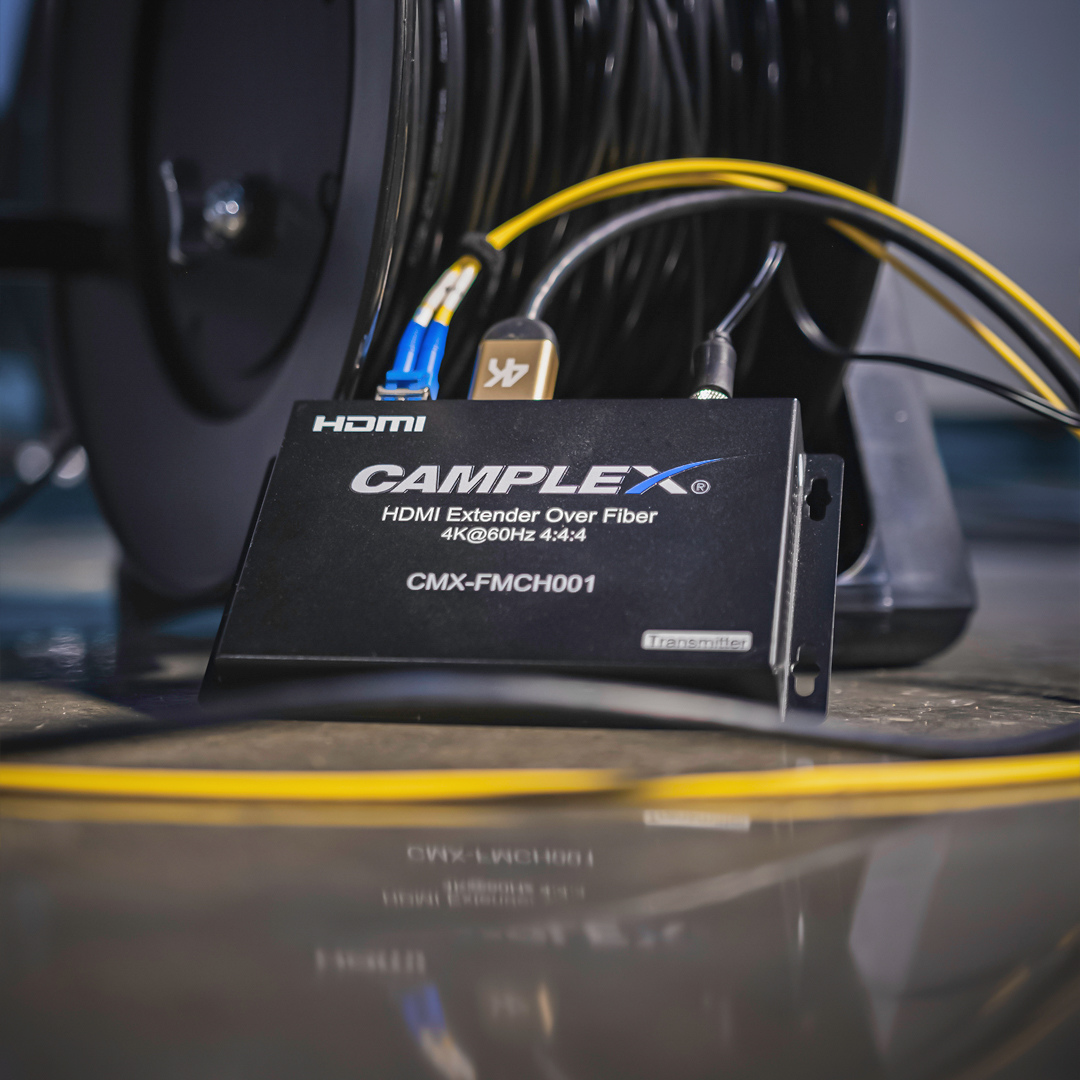

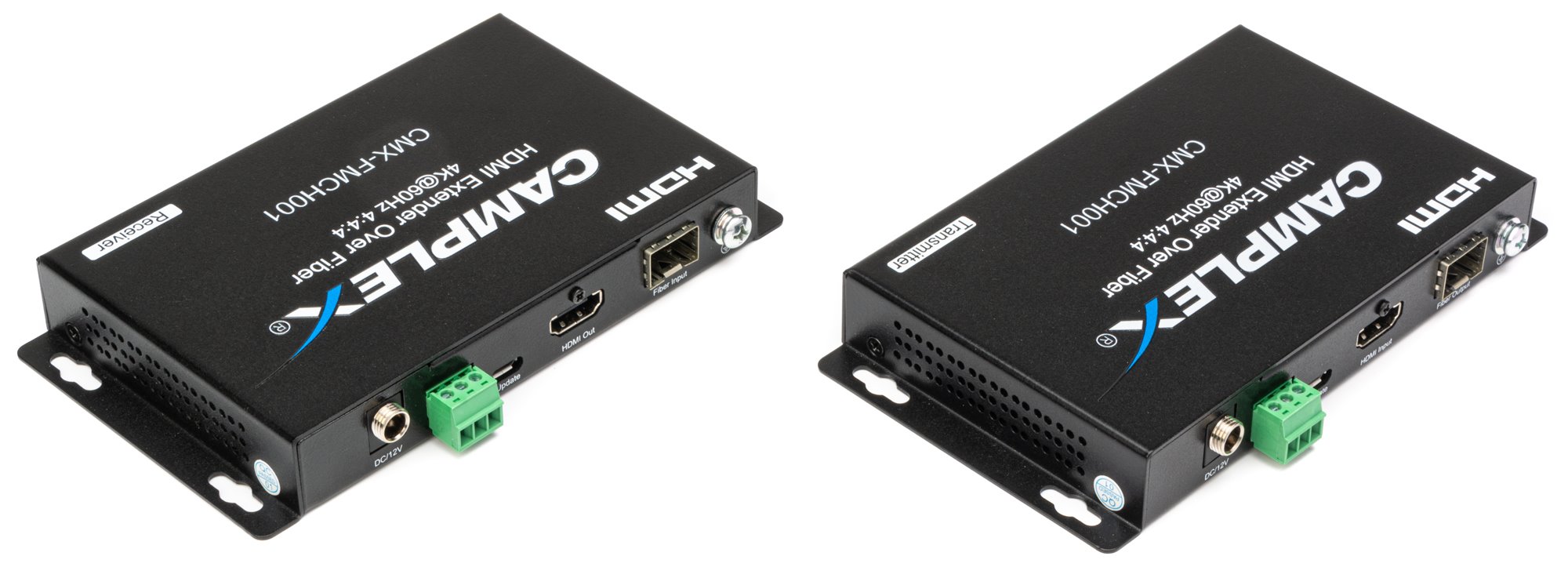

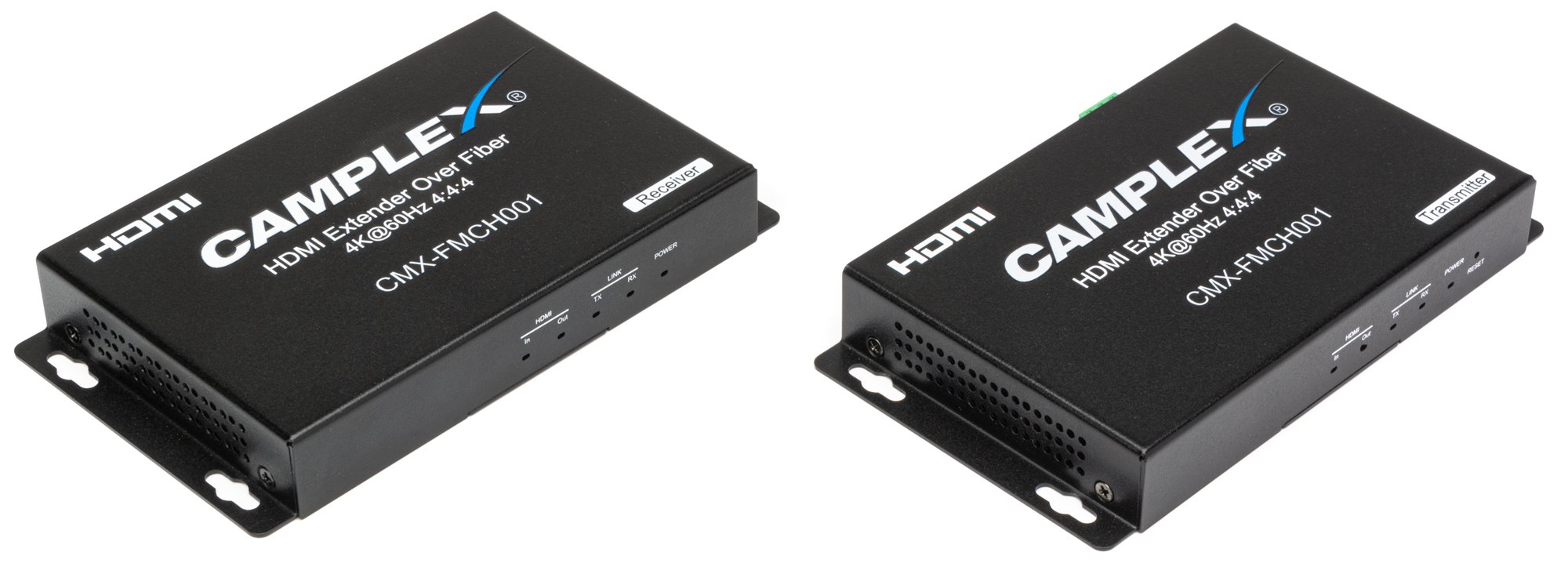

CMX-FMCH001 HDMI 2.0 over FIber SFP Extender with Automatic EDID and RS-232

The CMX-FMCH001 18 Gigabit Fiber extender sends a standard copper-based HDMI signal up to 4K@60Hz via an SFP transceiver module (not included) with a maximum distance of 37 miles over singlemode fiber and 984 feet over multimode (4K2K requires 10G SFP transceiver module). The system features automatic EDID for rapid integration of source and display, RS232 bi-directional pass through, and low latency. Housed in a vented, black powder-coated steel cabinet.



Includes 2 12VDC/1A power supplies and 2 Phoenix plugs

NOTE: Requires Duplex MSA Compliant SFP+ Modules (Not Included)





CMX-FMCH001

  • Automatic EDID for Rapid Integration of Source and Display
  • Low Latency
  • Supports HDCP 2.2, HDCP 1.4
  • RS232 Bi-Direction Pass Through
  • Locking Power Supplies
  • Rugged Black Powder-Coated Cabinet
  • Certifications: FCC, CE

  • Transmission Distance: SFP module Dependent up to: Single Mode 37 miles (60km), Multimode 984 feet (300m)
  • Resolutions: Up to 4kx2k@60hz, YUV4:4:4 HDR
  • Bandwidth: Up to 18Gbps
  • Video Format 4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution
  • Audio Format Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™
  • Power Consumption each Unit: 3W
  • Dimensions each Unit: 5-7/8 x 3-1/4 x 7/8 inches
  • Weight both Units: 1 lb
