Mini 1-Channel Uni-Directional 3G-SDI over Fiber Extender Set

Sorry, no canvas available

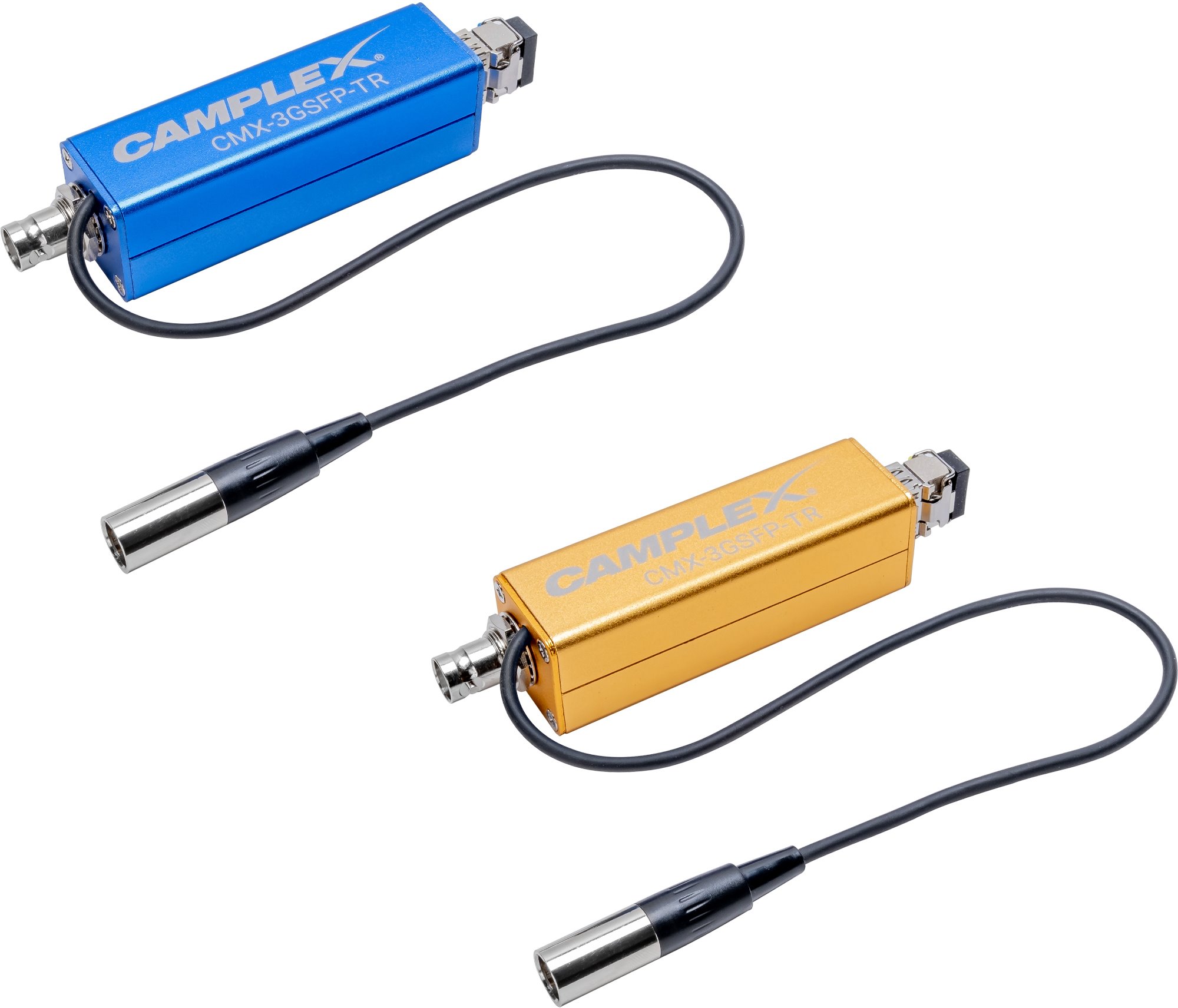

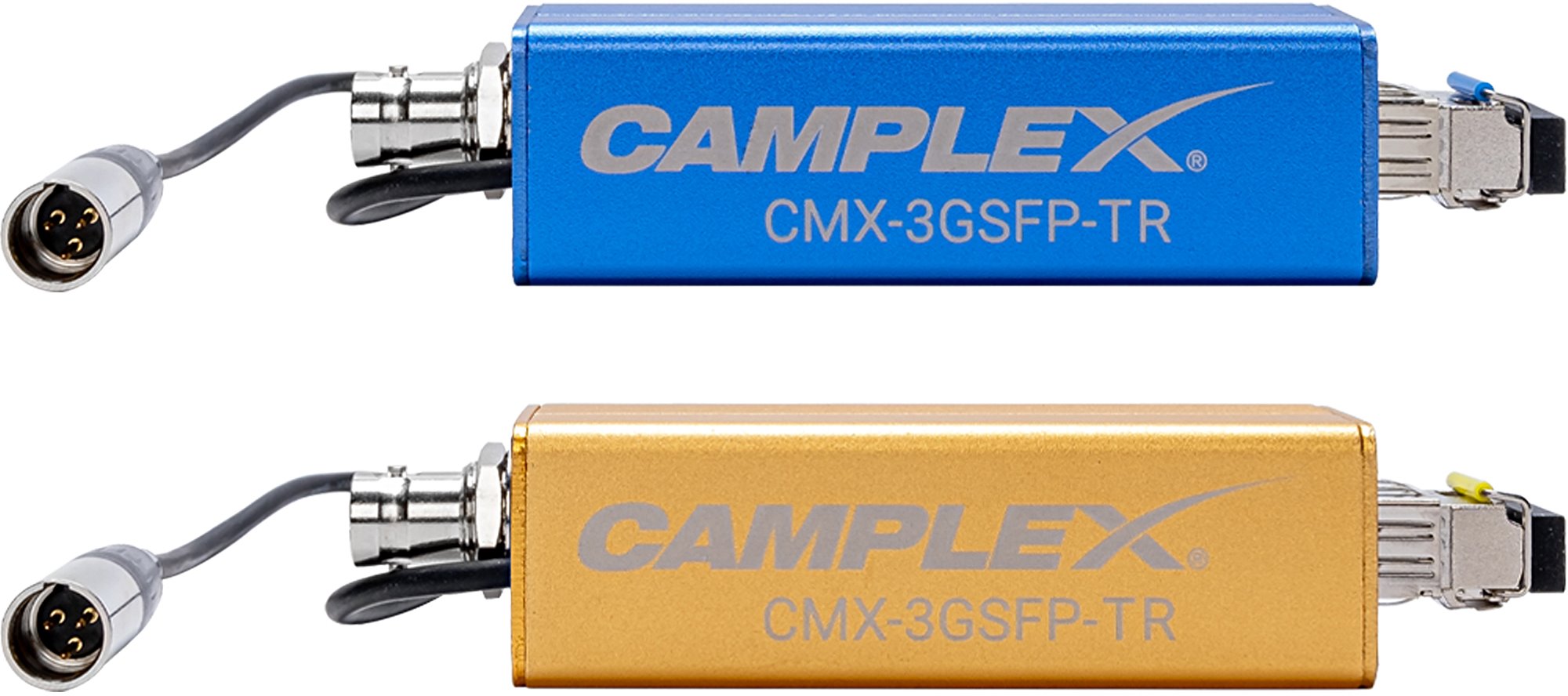

The Camplex CMX-3GSFP-TR is a mini 1-channel uni-directional 3G-SDI over fiber extender set that sends 3G-SDI signals up to 1080p@60Hz over one LC single mode fiber up to 18.6 miles. The compact lightweight design is perfect for camera and computer interfaces where space is limited.


Item Includes:

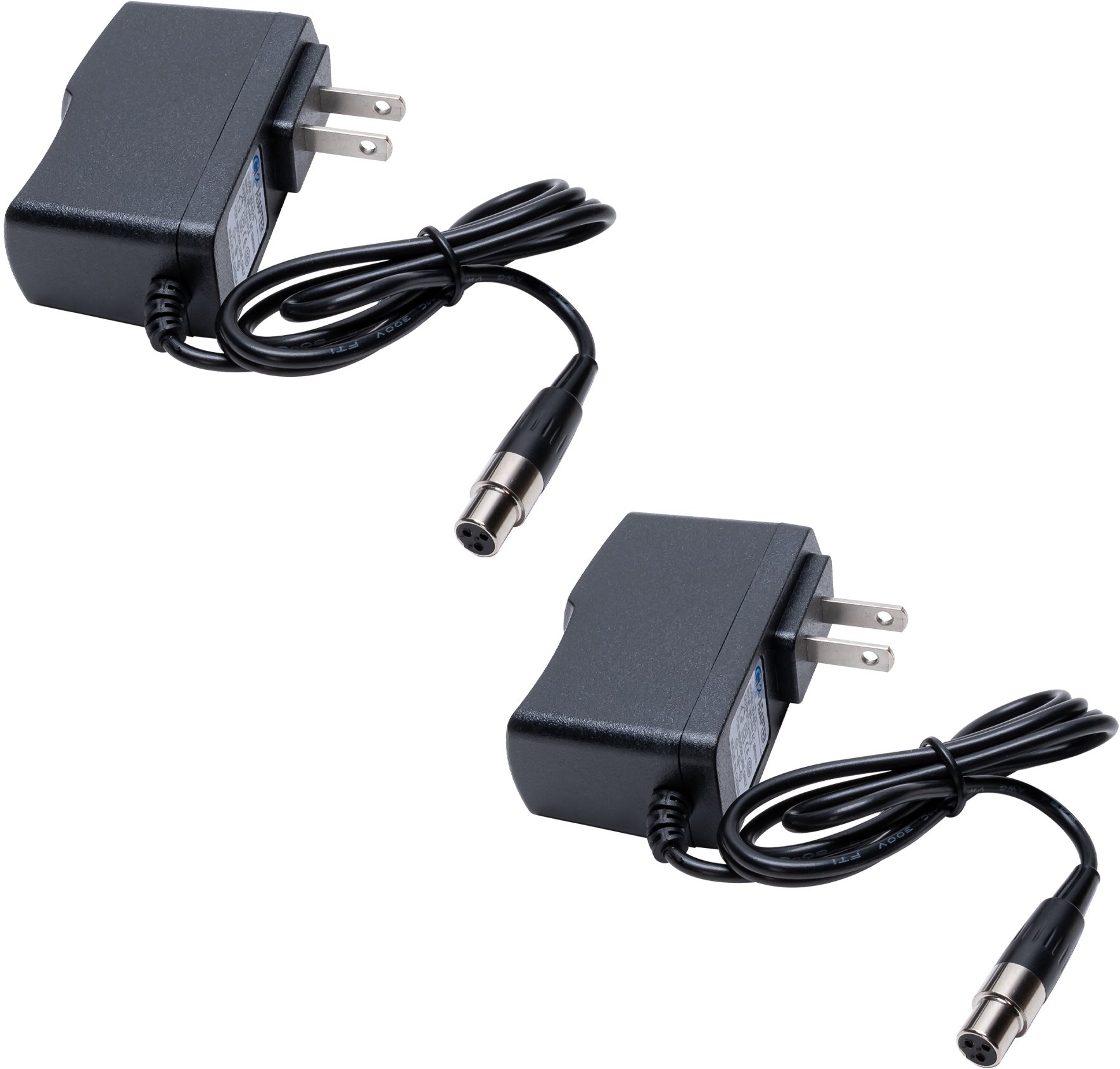

2 x 5V Mini XLR Power Supply

CMX-3GSFP-TR

  •  Sends 3G-SDI Signals Over One LC Single Mode Fiber up to 30km/18.6 Miles
  •  Supports Resolutions up to 1080p@60Hz
  •  Supports SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMTPE-259M (SD-SDI)
  •  Compact and Easy to Install
  •  Data Rate from 19.4Mbps up to 2.97Gb/s
  •  SMPTE 424M (2.97Gb/s) Clock Recovery
  •  5V Power Supply with Micro XLR Connector
  •  Supports Automatic Cable Equalization Based on the Data Rate Detected
  •  Single Mode 3G SDI Over Fiber Optic Extender

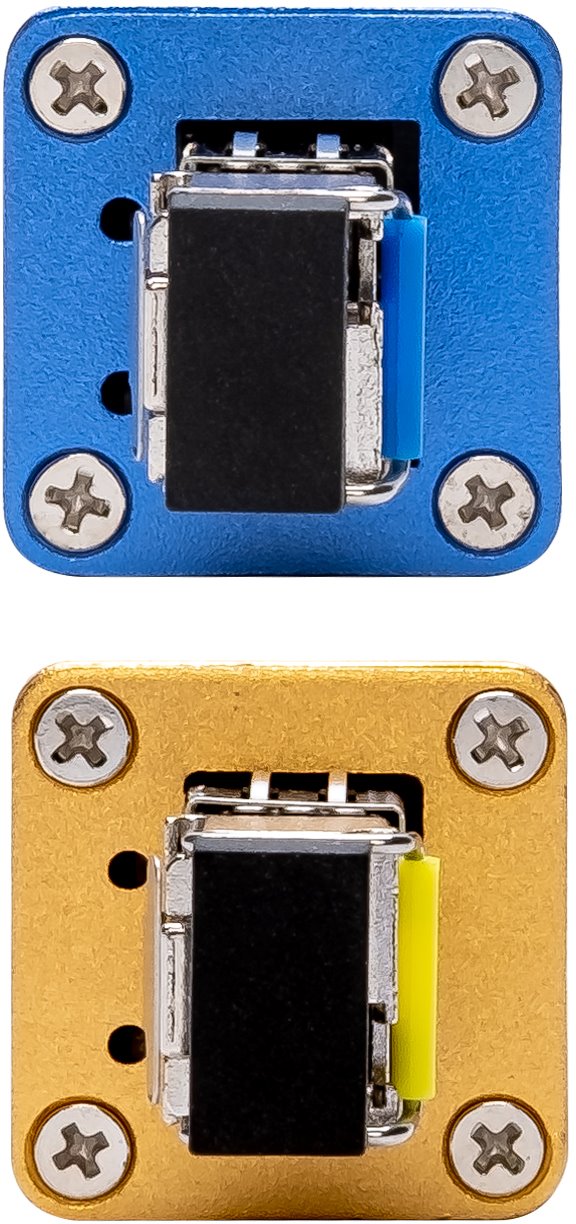

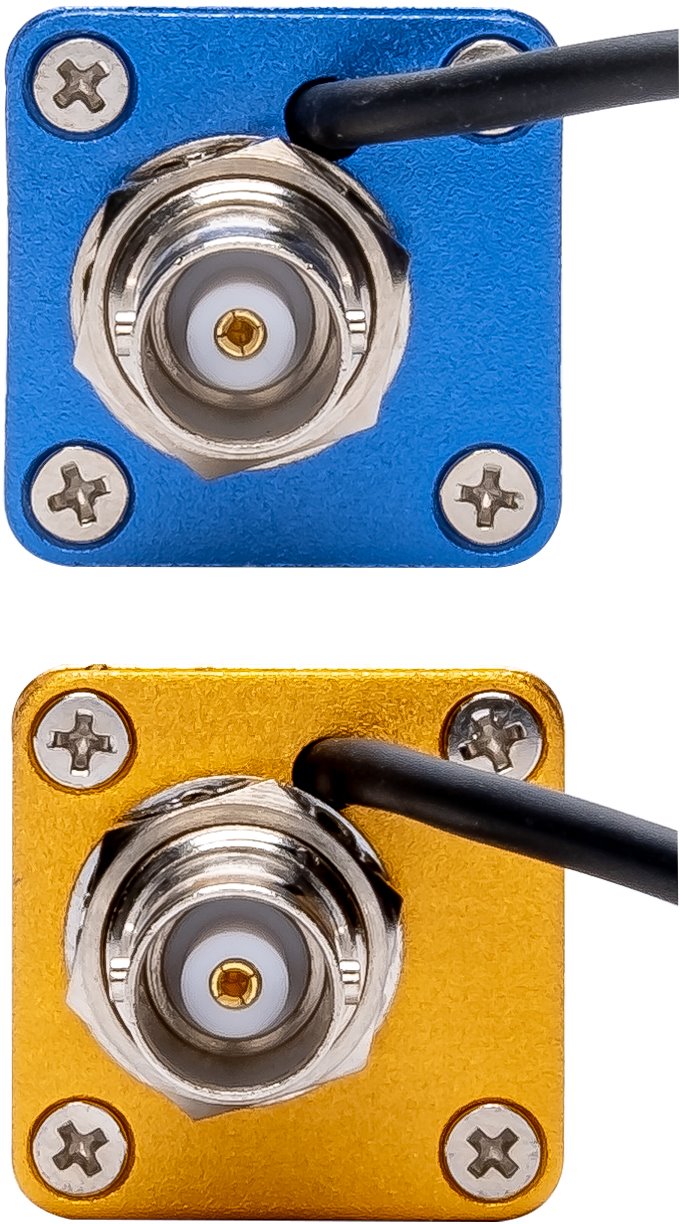

  •  Connectors: 75Ω BNC Female & simplex LC Female
  •  TV Signal Standard: SMPTE 424M, 292M, 259M, 297M, 305M, 310M,
  •  M2S, DVB-ASI, DVB-SSI and Others
  •  Telecom/Datacom Rate: 19.4Mb/s - 2.97Gb/s
  •  Signal Level: 800mV Nominal
  •  Transmission Distance: up to 30km/18.6 miles
  •  Reflection Loss: > 15dB
  •  Operating Temperature: -40°F - 115°F (-40°C - 45°C)
  •  Power Supply: 5V Mini XLR
  •  Power Consumption: 3W
  •  TX Dimensions (LxWxH): 4.55 x 1.03 x 1.01in
  •  RX Dimensions (LxWxH): 4.23 x 1.02 x 1.01in
