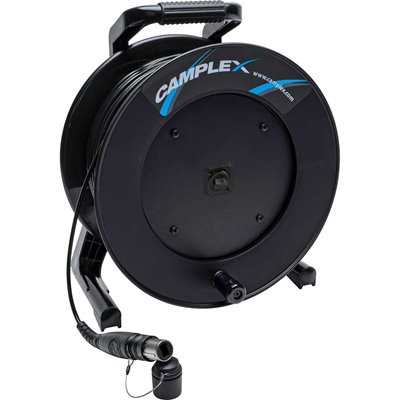

opticalCON DUO to Chassis Mount on Hub Tactical Reel

Sorry, no canvas available

Camplex opticalCON DUO to Chassis Mount on Hub Series are 2-channel fiber assemblies that transform standard LC-Duplex connectors into ruggedized connections housed in a durable all-metal enclosure. This design includes a resilient push-pull locking mechanism with spring-loaded action and superior cable security through aramid yarn reinforcement. It features automatic protective covers that effectively shield connections from environmental contaminants like dust and debris. Available in Single Mode and Multimode.

HF-TROC2M4H

opticalCON DUO to Neutrik Chassis Mount on Hub OM4 Multimode Tactical Fiber Optic Reel

HF-TROC2M-H

opticalCON DUO to Chassis Mount on Hub Multimode Fiber Optic Tac Reel

HF-TROC2S-H

opticalCON DUO to Chassis Mount on Hub Single Mode Fiber Optic Tac Reel

HF-TROC2M4H

  • Lightweight, rugged deployable fiber optic cable
  • Thick layers of aramid strength members increase the crush resistance of the cable
  • Polyurethane jacket provides abrasion, cut, and chemical resistance
  • High-quality Neutrik opticalCON DUO and Neutrik Chassis mount for reliable performance
  • Automatic sealing cover for maximum dust and dirt protection
  • Heavy-duty reel
  • Connectorized Hub versions feature Neutrik NO2-4FDW-A chassis connectors



HF-TROC2M-H

  • LC-based Neutrik opticalCON ADVANCED system with spring-loaded push-pull locking mechanism and all metal connector housing
  • Tactical tight-buffered OM3 Multimode cable with polyurethane jacket
  • IP65 rated in mated condition
  • Heavy duty deployable reel



HF-TROC2S-H

  • opticalCON assemblies are interferometrically tested to GR-326-CORE end-face standards.
  • Machine polishing processes provide exceptionally low return loss and insertion loss.
  • opticalCON features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination.
  • APC Polishing types available upon request.
  • Machine-polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection <-55dB
  • Heavy Duty Tactical Reel

HF-TROC2M4H

  • Fiber
    • Fiber Type: Bend-tolerant Multimode OM4
    • Core Diameter: 50µm
    • Cladding Diameter: 125µm
    • Primary Coating Diameter: 245µm
    • Secondary Coating Diameter: 900µm
    • Numerical Aperture: 0.2
    • Proof Test Level: 100 kpsi
    • Jacket Material: Flame retardant Tactical Polyurethane
    • Buffer Material: Hard Elastomeric
    • Cable Diameter: 0.19" (5.0mm)
    • Gigabit Ethernet Distance: 1040/600
    • 10-Gigabit Ethernet Distance: 550/300
    • Maximum Attenuation: 3.0/1.0dB/km
    • Minimum Laser Bandwidth: 4700/500MHz-km
    • Minimum LED Bandwidth: 3500/500MHz-km
    • Impact Resistance: 1500 Impacts
    • Crush Resistance: 1800 N/cm
    • Max Tensile Load:
      • Installation: 400lbs (1800N)
      • Operating: 130lbs (600N)
    • Min Bend Radius:
      • Installation: 2.0" (5.0cm)
      • Operating: 1.0" (2.5cm)
    • Temperature:
      • Operating: -40°F - 185°F (-40°C - 85°C)
      • Storage: -94°F - 185°F (-70°C - 85°C)
  • Neutrik opticalCON DUO Connector
    • Cable Retention: 500 N
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime (typ.): 5000 mating cycles
    • Locking Device: Push-Pull
    • Insertion Loss: < 0.45dB/connection
  • Neutrik NO2-4FDW-A
    • Contact Resistance: < 7mΩ
    • Dielectric Strength: 1.5kV DC
    • Insulation Resistance: > 2GΩ (initial)
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: 5000 mating cycles
    • Insertion Loss: < 0.4dB/connection



HF-TROC2M-H

  • Fiber Type: OM3 Multimode
  • Cable Diameter: 0.20in (5.0mm)
  • Core/Cladding Diameter: 50/125 µm
  • Gigabit Ethernet Distance: 1000/600 m
  • 10-Gigabit Ethernet Distance: 300/300 m
  • Maximum Cable Attenuation: 3.5/1.5 dB/km
  • Minimum Laser EMB Bandwidth: 2000/500
  • Minimum ODL LED Bandwidth: 1500/500
  • Wavelength: 850/1310 nm
  • Jacket Color: Black
  • Jacket Material: Polyurethane
  • Buffer Material: Hard Elastomeric
  • Max Tensile Load Installed: 1800 N (400lbs)
  • Max Tensile Load Operating: 600 N (130lbs)
  • Min Bend Radius Fixed: 2.0in (5.0cm)
  • Min Bend Radius Flexing: 1.0in (2.5cm)
  • Impact Resistance EIA/TIA-455-25A: 1500 Impacts
  • Crush Resistance TIA/EIA-455-41A: 1800 N/cm
  • Operating Temperature: -40°F to 185°F (-40°C to +85°C)
  • Storage Temperature: -94°F to 185°F (-70°C to +85°C)
  • Weight: 0.015lbs/ft



HF-TROC2S-H

  • Overall Specifications
    • (1) Neutrik opticalCON, NO2SX & (1) Neutrik NO2-4FDW-1-A
    • Tactical, Polyurethane Jacket, 5mm diameter, Black
    • Nickel Finish Connector Body
    • 50', 100', 164', 250', 328', 500', 656', or Custom
  • Mechanical Specifications:
    • Cable Retention Force: 500N
    • Lifetime: >1000 Cycles
    • Insertion/Withdrawal Force: < 45N
    • Operating Temperature: -25°C to +75°C
    • Minimum Bend Radius: 4cm
  • Optical Specifications:
    • Type: LC-UPC (Straight Polish)
    • Fiber Type: 9m Single mode Fiber
    • Cable Loss: < 0.5dB/km @ 1310/1550nm
    • Connector Loss: <0.5dB/Connector
    • Connector Back Reflection: -55dB/-45dB RL (typical/max)
