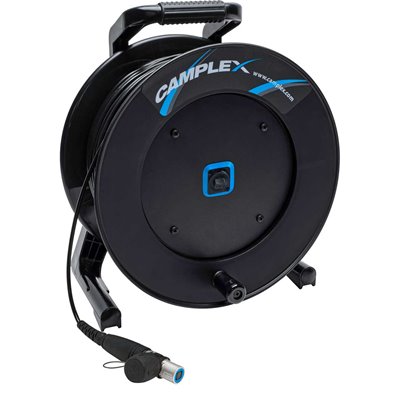

opticalCON QUAD to Chassis Mount on Hub Tactical Reel

Sorry, no canvas available

Camplex opticalCON Quad to Chassis Mount on Hub Series are 4-channel fiber assemblies that accomidates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal enclosure. This design includes a resilient push-pull locking mechanism with spring-loaded action and superior cable security through aramid yarn reinforcement. It features automatic protective covers that effectively shield connections from environmental contaminants like dust and debris. Available in Single Mode and Multimode.



HF-TROC4M4H

opticalCON QUAD to Neutrik Chassis Mount on Hub OM4 Multimode Tactical Fiber Optic Reel

HF-TROC4M-H

opticalCON QUAD to Chassis Mount on Hub Multimode Fiber Optic Tac Reel

HF-TROC4S-H

opticalCON QUAD to Chassis Mount on Hub Single Mode Fiber Optic Tac Reel

HF-TROC4M4H

  • Lightweight, rugged deployable fiber optic cable
  • Thick layers of aramid strength members increase the crush resistance of the cable
  • Polyurethane jacket provides abrasion, cut, and chemical resistance
  • High-quality Neutrik opticalCON QUAD connectors
  • Automatic sealing mechanical shutter system for maximum dust and dirt protection
  • Heavy-duty reel
  • Connectorized Hub version features Neutrik NO4FDW-A chassis connectors



HF-TROC4M-H

  • opticalCON assemblies are interferometrically tested to GR-326-CORE end-face standards.
  • Machine polishing processes provide exceptionally low return loss and insertion loss.
  • opticalCON features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination.
  • APC Polishing types available upon request.
  • Machine-polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection <-55dB
  • Heavy Duty Tactical Reel



HF-TROC4S-H

  • opticalCON assemblies are interferometrically tested to GR-326-CORE end-face standards.
  • Machine polishing processes provide exceptionally low return loss and insertion loss.
  • opticalCON features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination.
  • APC Polishing types available upon request.
  • Machine-polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection <-55dB
  • Heavy Duty Tactical Reel

HF-TROC4M4H

  • Fiber:
    • Fiber Type: Laser Optimized OM4 Multimode
    • Core/Cladding Diameter (µm): 50/125
    • Numeric Aperture: 0.2
    • Wavelength (nm): 850/1310
    • Gigabit Ethernet Distance (m): 1040/600
    • 10-Gigabit Ethernet Distance (m): 550/300
    • Maximum Cabled Attenuation (dB/km): 3.0/1.0
    • Minimum Laser EMB Bandwidth (MHz-km): 4700/500
    • Minimum OFL LED Bandwidth (MHz-km): 3500/500
    • Primary Coating Diameter (µm): 245
    • Secondary Coating Diameter (µm): 900
    • Proof Test Level (kpsi): 100
    • Jacket Material: Flame Retardant Tactical Polyurethane
    • Buffer Material: Hard Elastomeric
    • Cable Diameter: 0.22in (5.5 mm)
    • Impact Resistance: 1500 impacts
    • Crush Resistance: 1800 N/cm
    • Flex Resistance: 2000 cycles
    • Temperature:
      • Operating: -40°F to 185°F (-40°C to +85°C)
      • Storage: -94°F to 185°F (-70°C to +85°C)
  • Max Tensile Load:
    • Installation: 400lbs (1,800 N)
    • Operating: 130lbs (600 N)
  • Min Bend Radius:
    • Installation: 2.2in (5.5cm)
    • Operating: 1.1in (2.8cm)
  • Neutrik NO4FDW-A:
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: 5000 mating cycles
    • Insertion Loss: < 0.5 dB / connection
  • Neutrik opticlCON QUAD Connector:
    • Cable Retention: 500N
    • Insertion Force: <45 N
    • Withidrawal Force: <45 N
    • Lifetime: 5000 mating cycles
    • Locking Device: Push-Pull
    • Insertion Loss: < 0.45 dB/connection



HF-TROC4M-H



  • Overall Specifications
    • (2) Neutrik opticalCON, NO4MX & (1) Neutrik NO4FDW-A
    • Tactical, Polyurethane Jacket, 5mm diameter, Black
    • Nickel Finish Connector Body
  • Mechanical Specifications:
    • Cable Retention Force: 500N
    • Lifetime: >1000 Cycles
    • Insertion/Withdrawal Force: < 45N
    • Operating Temperature: -25°C to +75°C
    • Minimum Bend Radius: 4cm
  • Optical Specifications:
    • Type: LC-UPC (Straight Polish)
    • Fiber Type: 50Μ OM3 Multimode Fiber
    • Cable Loss: < 3dB/km @ 850nm, < 1dB/km @ 1300nm
    • Connector Loss: <0.5dB/Connector
    • Connector Back Reflection: -55dB/-45dB RL (typical/max)



HF-TROC4S-H



  • Overall Specifications
    • (1) Neutrik opticalCON, NO4SX & (1) Neutrik NO4FDW-A
    • Tactical, Polyurethane Jacket, 5mm diameter, Black
    • Nickel Finish Connector Body
  • Mechanical Specifications:
    • Cable Retention Force: 500N
    • Lifetime: >1000 Cycles
    • Insertion/Withdrawal Force: < 45N
    • Operating Temperature: -25°C to +75°C
    • Minimum Bend Radius: 4cm
  • Optical Specifications:
    • Type: LC-UPC (Straight Polish)
    • Fiber Type: 9m Single mode Fiber
    • Cable Loss: < 0.5dB/km @ 1310/1550nm
    • Connector Loss: <0.5dB/Connector
    • Connector Back Reflection: -55dB/-45dB RL (typical/max)
