Patch Cables

Sorry, no canvas available

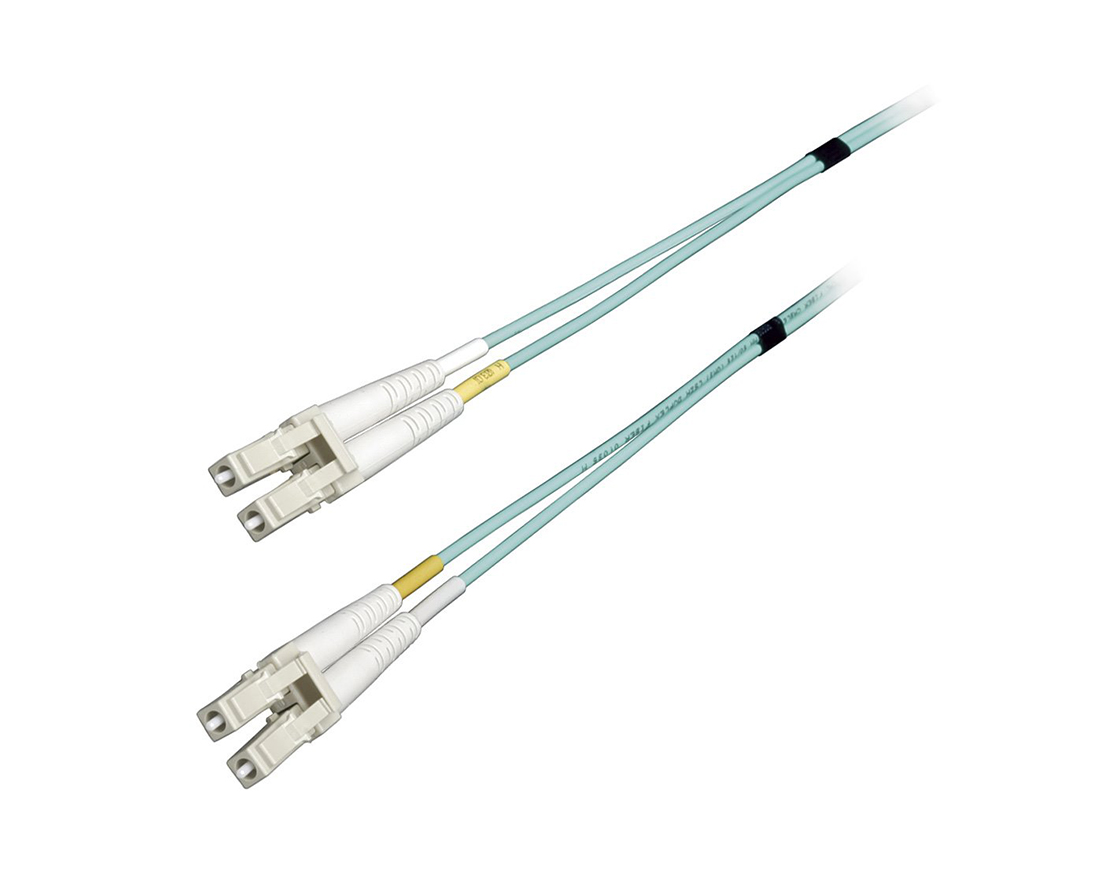

Camplex MMD50-LC-LC-001 Fiber Optic Patch Cables Multimode Duplex LC to LC Fiber Camplex MMD50-LC-LC-001 Fiber Optic Patch Cables Multimode Duplex LC to LC Fiber Camplex MMD50-LC-LC-001 Fiber Optic Patch Cables Multimode Duplex LC to LC Fiber Camplex MMD50-LC-LC-001 Fiber Optic Patch Cables Multimode Duplex LC to LC Fiber Camplex MMD50-LC-LC-001 Fiber Optic Patch Cables Multimode Duplex LC to LC Fiber

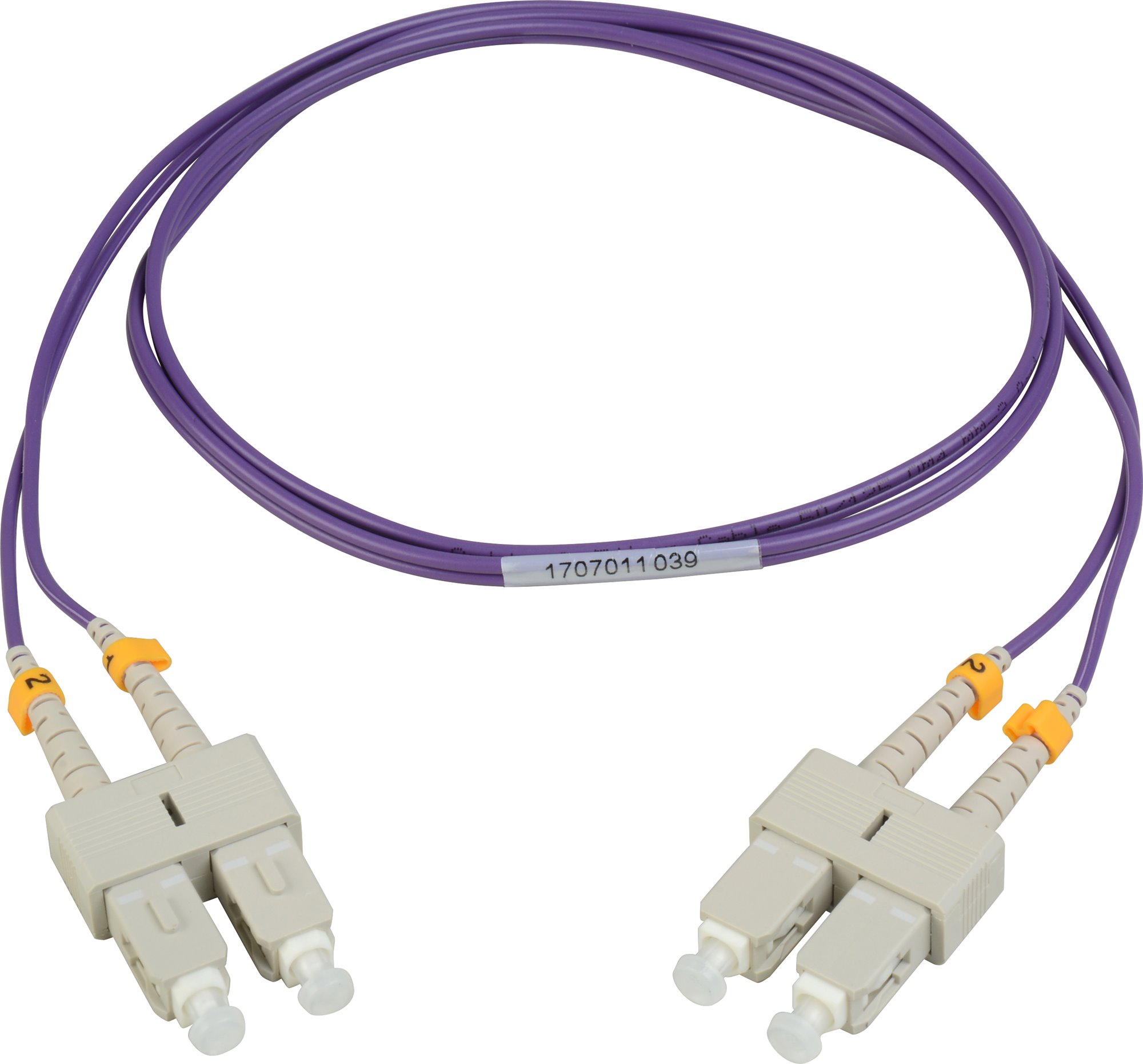

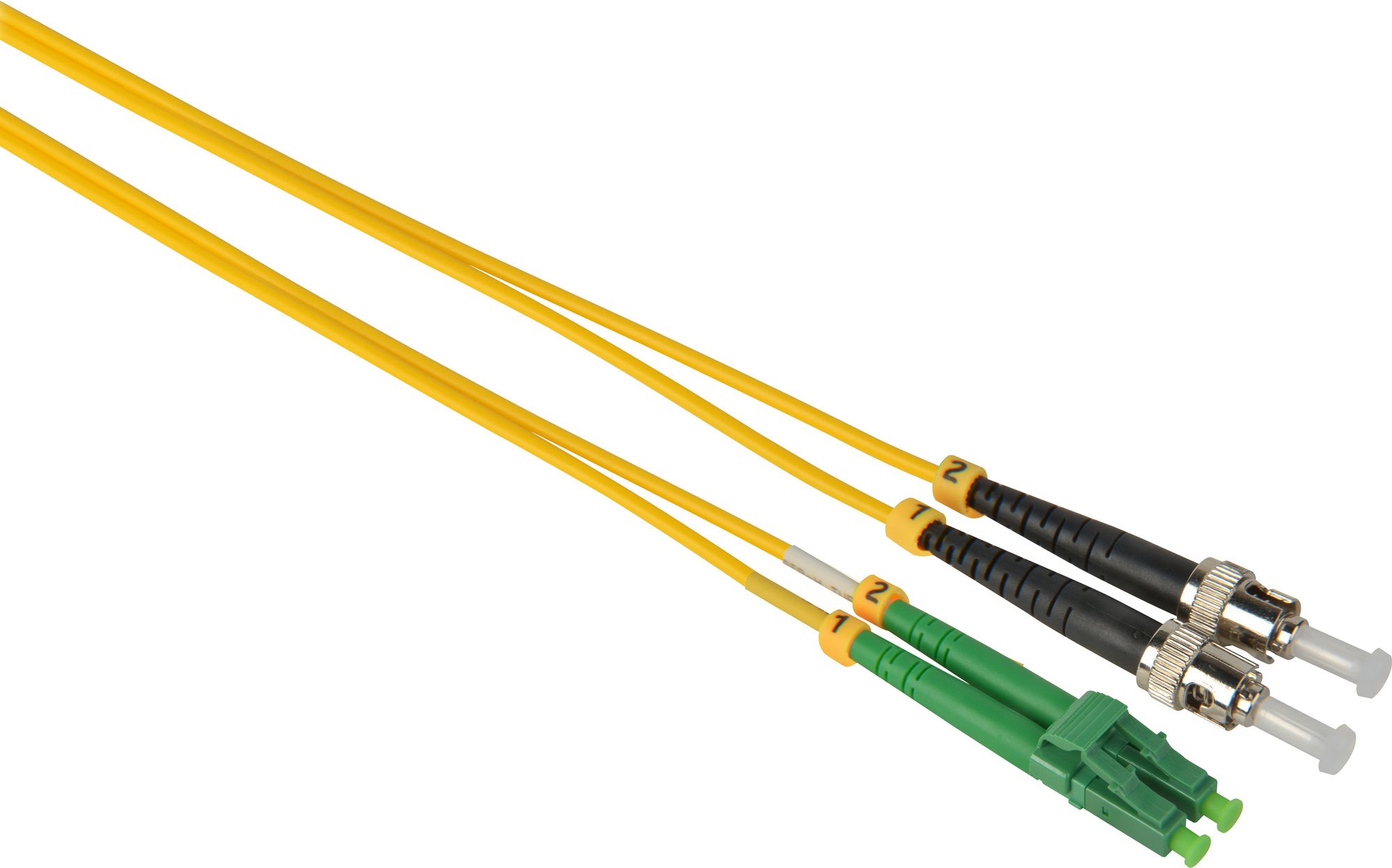

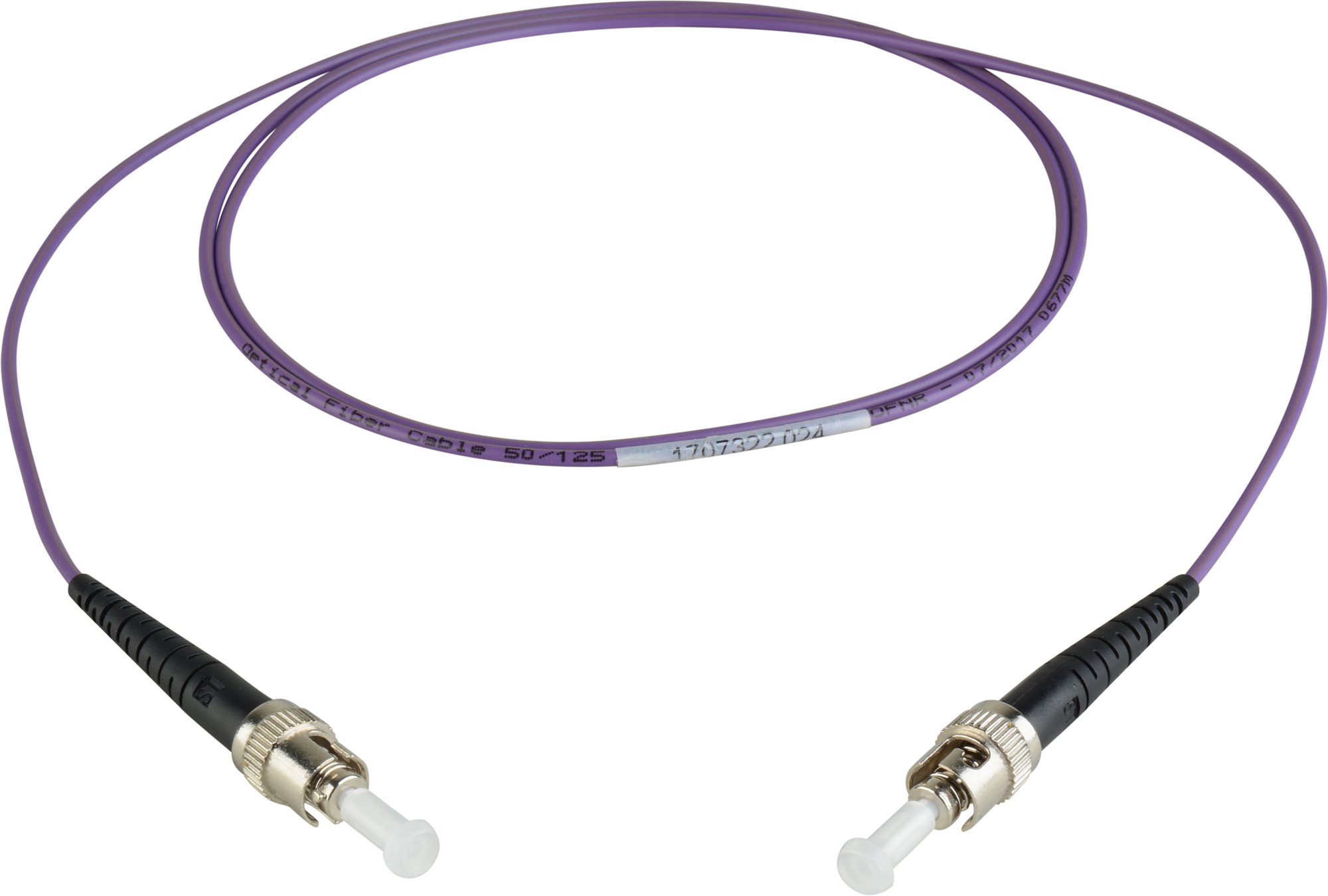

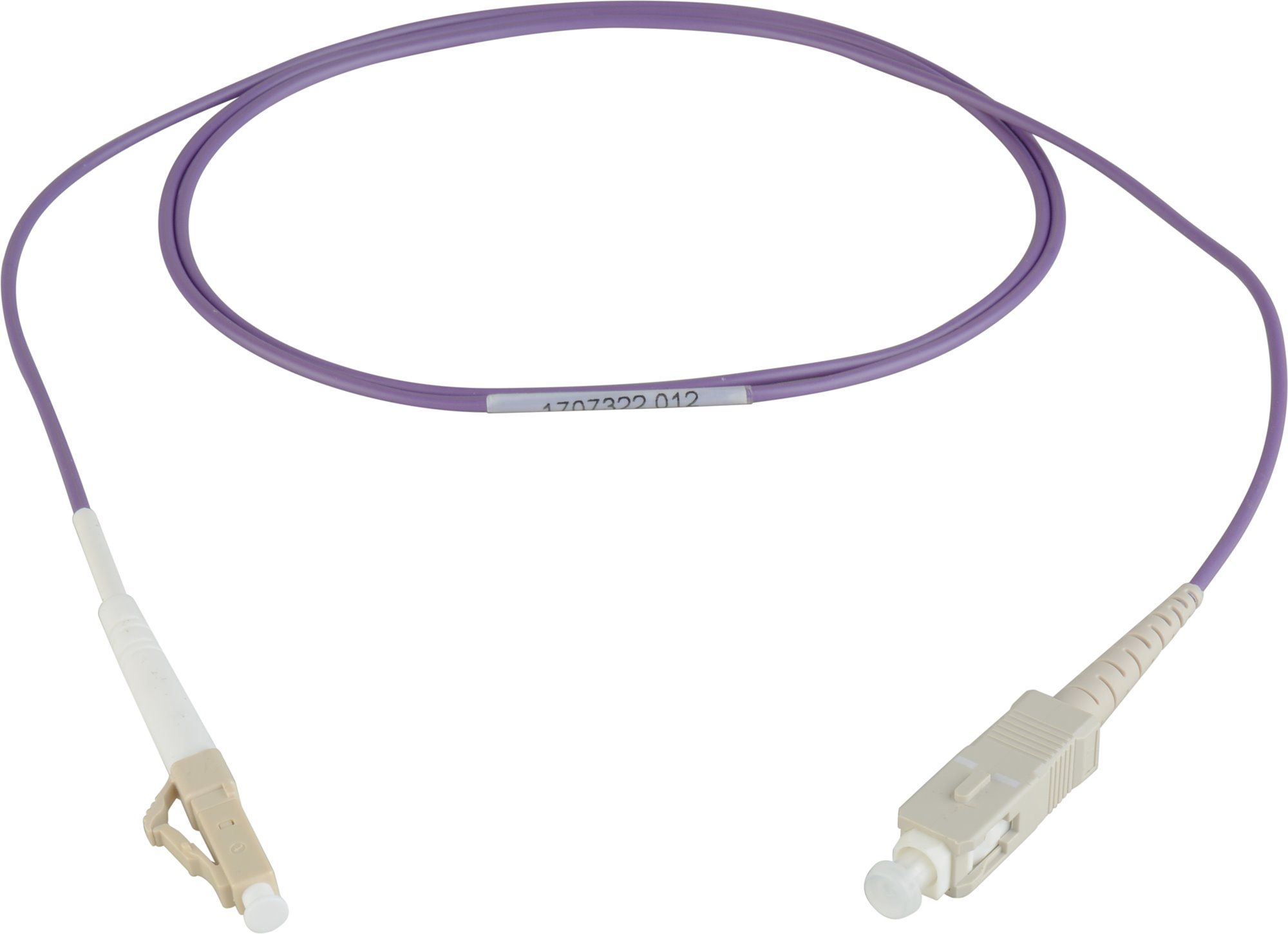

Multimode & Single Mode Fiber Optic Patch Cables Fiber optic patch cables connect fiber optic patch panels and high-speed network devices. Camplex patch cables are fully tested to ensure reliable performance in critical applications. Available in single mode fiber and multimode fiber cable, simplex or duplex, and a variety of standard fiber optic connectors.





PATCH CABLES

  •  Use with both LED and VCSEL laser light sources
  •  Ceramic ferrules for long-lasting reliability and precision alignment
  •  Connect a fiber optic patch panel and a network device
  •  Duplex cable is joined together in a zipcord style for easy separation
  •  Single mode or multimode fiber

SINGLE MODE SIMPLEX & DUPLEX
Insertion Loss:
≤;0.30dB max (PC, UPC) / ≤;0.20dB max (APC)
Return Loss: ≥45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
Tensile Strength: Long Term: 160N / Short Term: 300N
Pressive Strength: Long Term: 300N / Short Term: 1000N
Bend Radius (mm): Dynamic: 80mm / Static: 40mm
Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
Temperature: -20°C ~ 80°C

MULTIMODE OM1, OM2, OM3, OM4 SIMPLEX & DUPLEX
Insertion Loss:
≤0.20dB max (PC)
Tensile Strength: Long Term: 160N / Short Term: 300N
Pressive Strength: Long Term: 300N / Short Term: 1000N
Bend Radius (mm): Dynamic: 80mm / Static: 40mm
Attenuation: @850nm: ≤3.5dB/km / @1300nm: ≤3.5dB/km
Temperature: -20°C ~ 80°C
BW: OM1 @850nm: ≥100MHz Km / @1300nm: ≥200MHz km
BW: OM2 @850nm: ≥700MHz Km / @1300nm: ≥500MHz km
BW: OM3 @850nm: ≥1500MHz Km / @1300nm: ≥500MHz km
BW: OM4 @850nm: ≥3500MHz Km / @1300nm: ≥500MHz km
