TAC1 Cables

Sorry, no canvas available

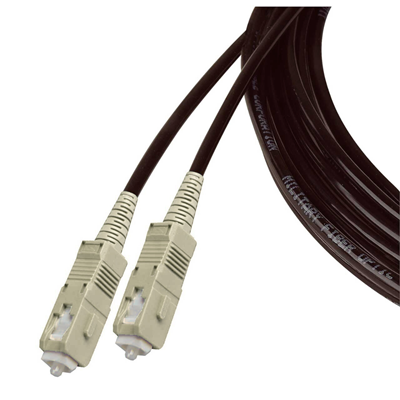

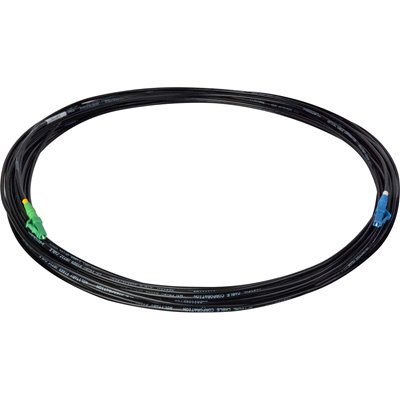

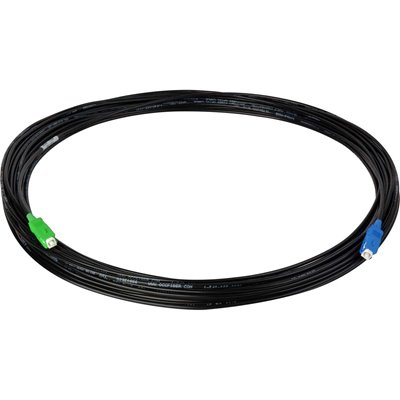

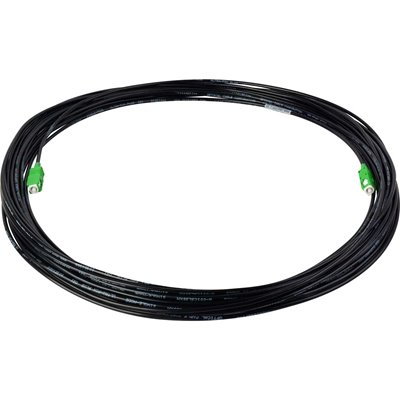

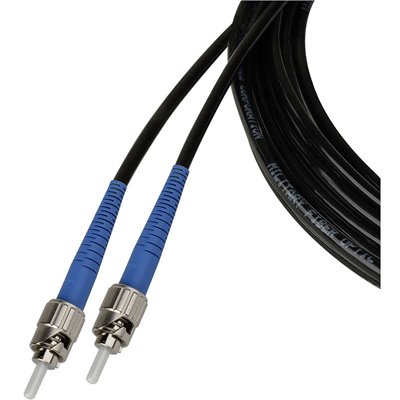

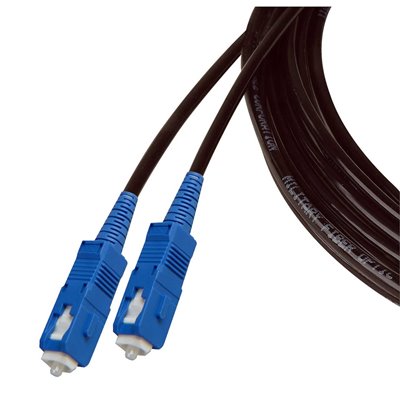

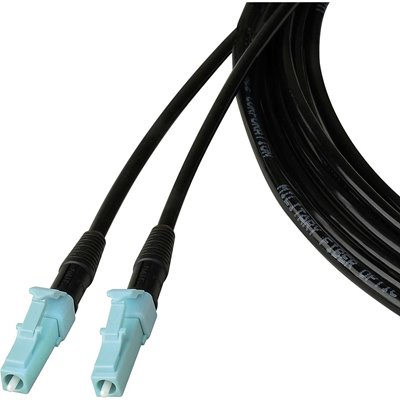

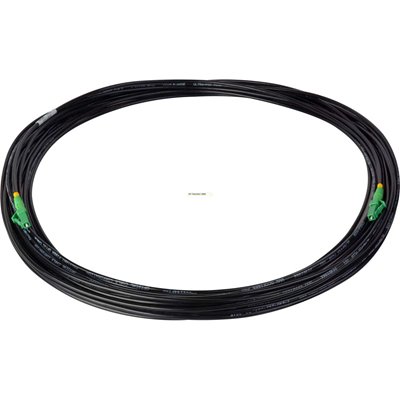

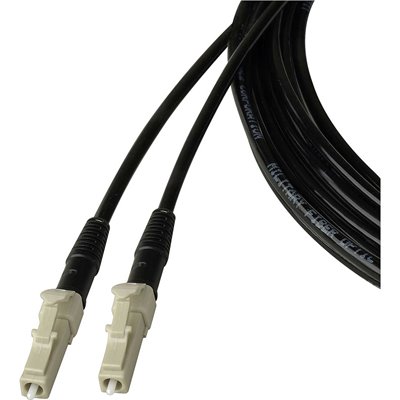

Camplex HF-T1M1-LC-0010 Simplex OM1 Multimode LC Fiber Optic Tactical Cable 10 Foot

TAC1 HF-T1 Tactical Cables The single channel TAC1 tactical fiber optic cable with a polyurethane jacket is designed for broadcast and pro-audio applications requiring an outdoor rated crush and impact resistant design. Assemblies are machine polished and interferometer tested to industry standards.

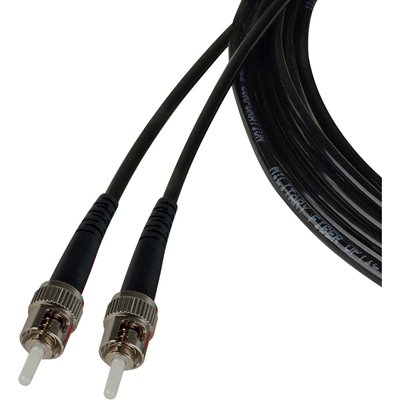

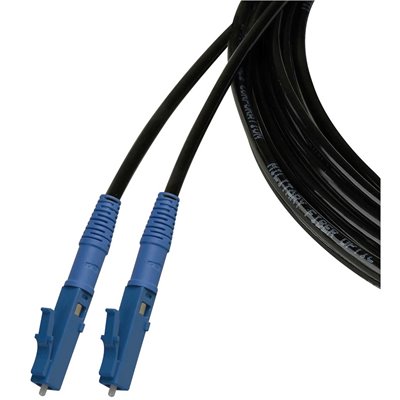

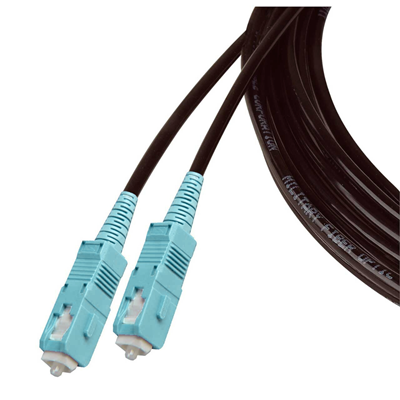

Available in single mode or multimode fiber with a variety of connector options and various lengths.

  • Broadcast Deployable
  • Indoor/Outdoor rated jacket
  • Typical RL <-55dB and IL<0.25dB.
  • Wide temperature range (typically -55°C to 85°C)
  • 500μm primary acrylate buffer with 900μm secondary hard elastomeric buffer (Ultra-Fox Plus)
  • Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
  • Designed to withstand crush and impact after deployment
  • Strong, lightweight, and extremely durable cable

OCC Single Mode Fiber:

  • Core/Cladding Diameter (µm): 9/125
  • Wavelength (nm): 1310/1550
  • Maximum Cable Attenuation (dB/km): 0.5/0.5
  • Primary Coating Diameter (µm): 500
  • Secondary Buffer Diameter (µm): 900
  • Zero Dispersion Slope (ps/nm2-km): 0.092
  • Proof Test Level (kpsi): 100
  • Jacket Color: Black
  • Jacket Material: Polyurethane
  • Buffer Material: Hard Elastomeric
  • Cable Diameter: 0.11in (2.9mm)
  • Flex Resistance: 2,000 Cycles
  • Crush Resistance: 440 N/cm
  • Max Tensile Load:
    • Installation: 110lbs (500N)
    • Operating: 70lbs (300N)
  • Min Bend Radius:
    • Installation: 1.1in (2.9cm)
    • Operating: 0.6in (1.5cm)

Senko Connector:

  • Typical Insertion Loss (dB): 0.08
  • Max. Insertion Loss (dB): 0.20
  • Typical Return Loss (dB): ≥55
  • Ferrule Diameter (µm): 125
